TCS Suzuki GSF600 Bandit Mk1 Carburettor Rebuild Kit
£100.00 GBP
Taxes included.
TCS Suzuki GSF600 Bandit Mk1 Carburettor Rebuild Kit
A complete rebuild kit for the Suzuki GSF600 Bandit Mk1, containing the key components needed to properly overhaul all four carburettors.
Unlike the generic carburettor kits widely available online, this kit uses FKM (Viton) seals throughout and high quality UK manufactured jets. The kit also includes stainless steel hex fasteners to replace the original carburettor screws, giving you a much better long term solution when rebuilding an older set of Bandit carburettors.

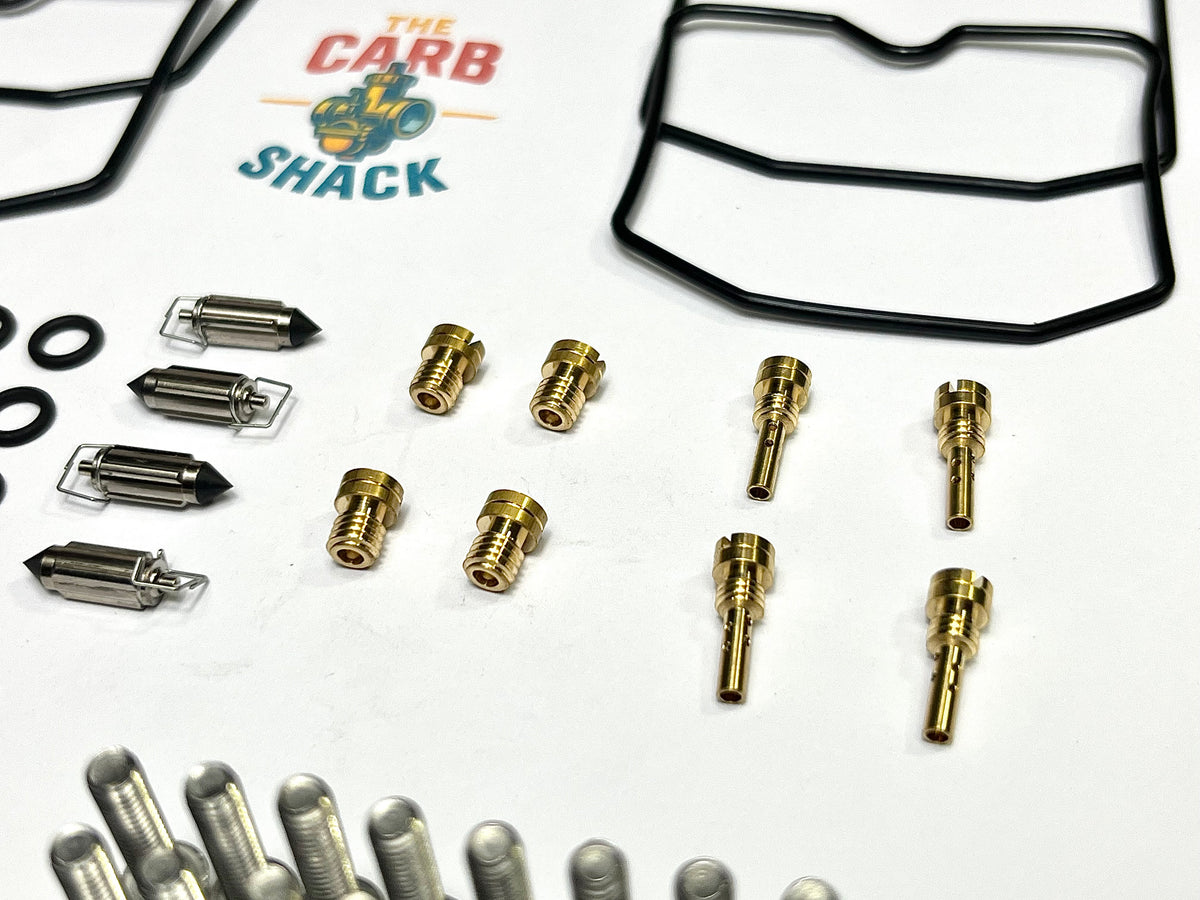

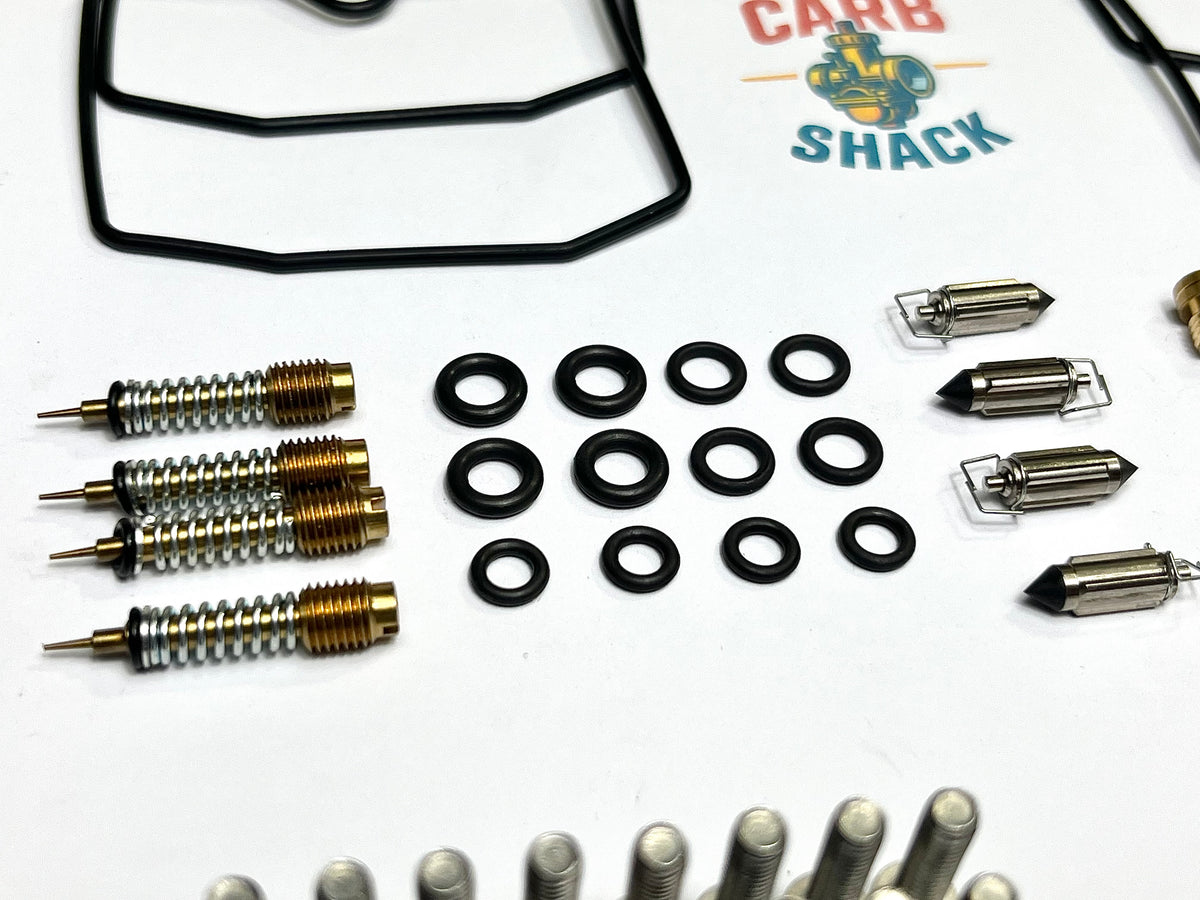

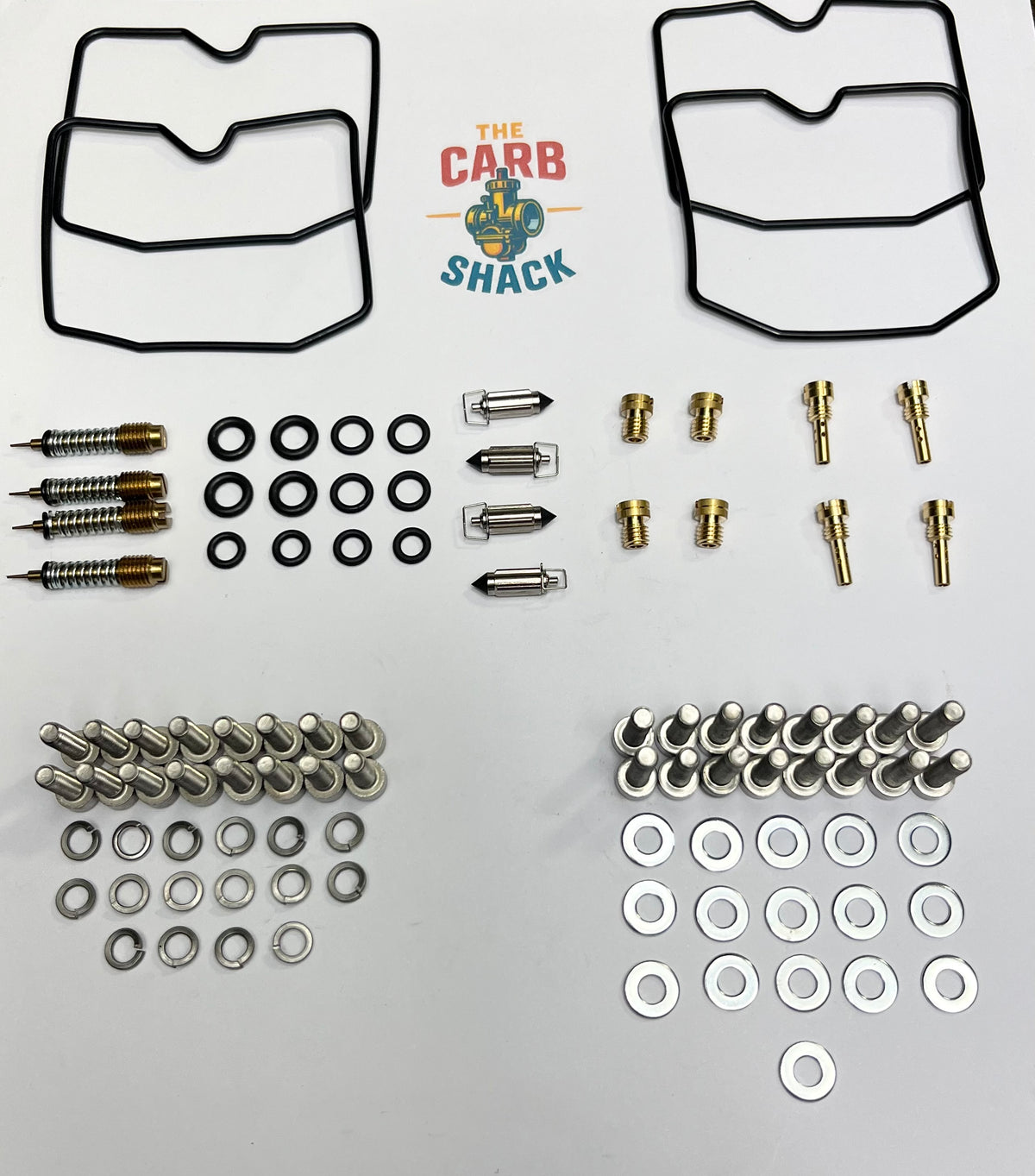

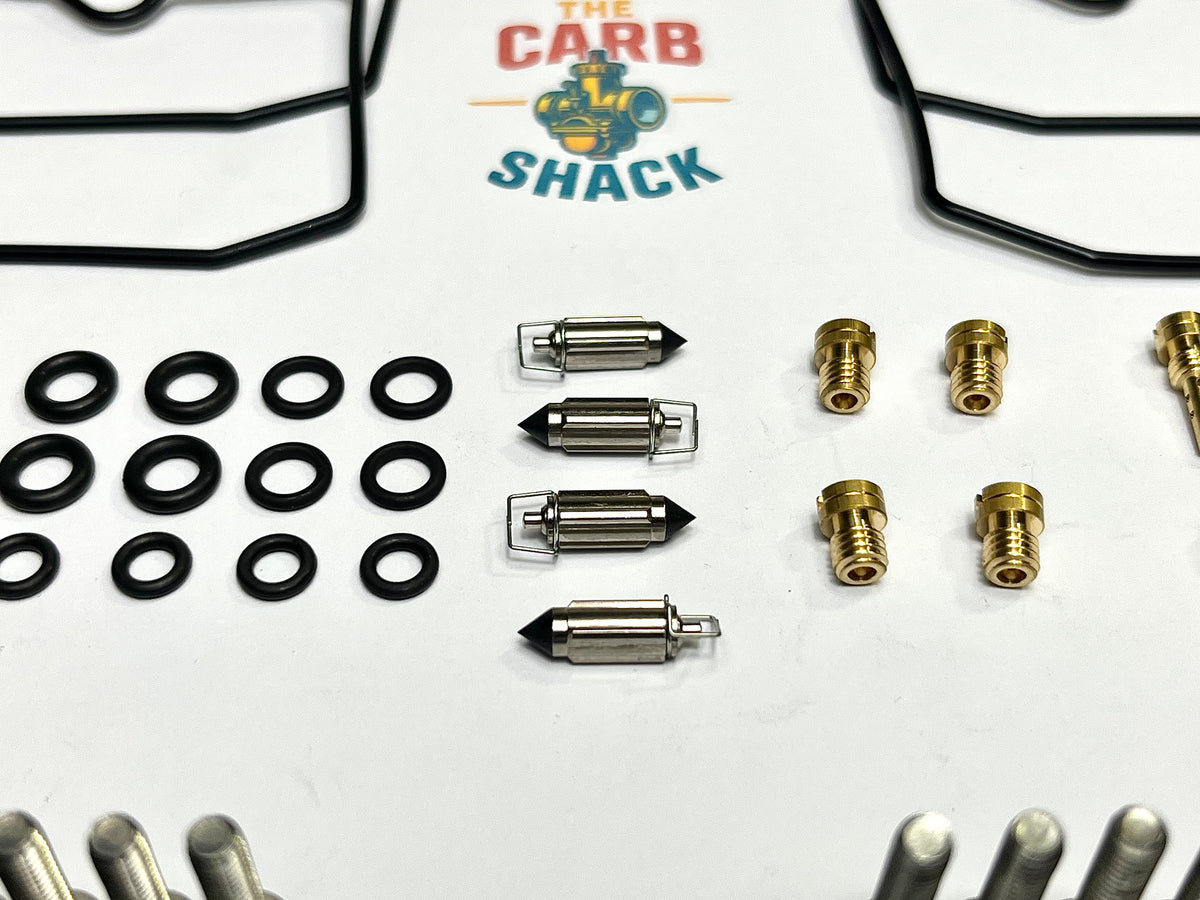

What’s Included
Gaskets & Seals
- 4 × Float bowl gaskets
- 4 × Fuel T-piece seals
- 4 × Fuel rail seals
- 4 × Breather T-piece seals
- All seals are FKM (Viton)
Mixture & Fuel Components
- 4 × Float needles
- 4 × Mixture screws
- 4 × Mixture screw washers
- 4 × Mixture screw O-rings
Jets
- 4 × #35 pilot jets
- 2 × #98 main jets
- 2 × #100 main jets
- High quality UK manufactured jets

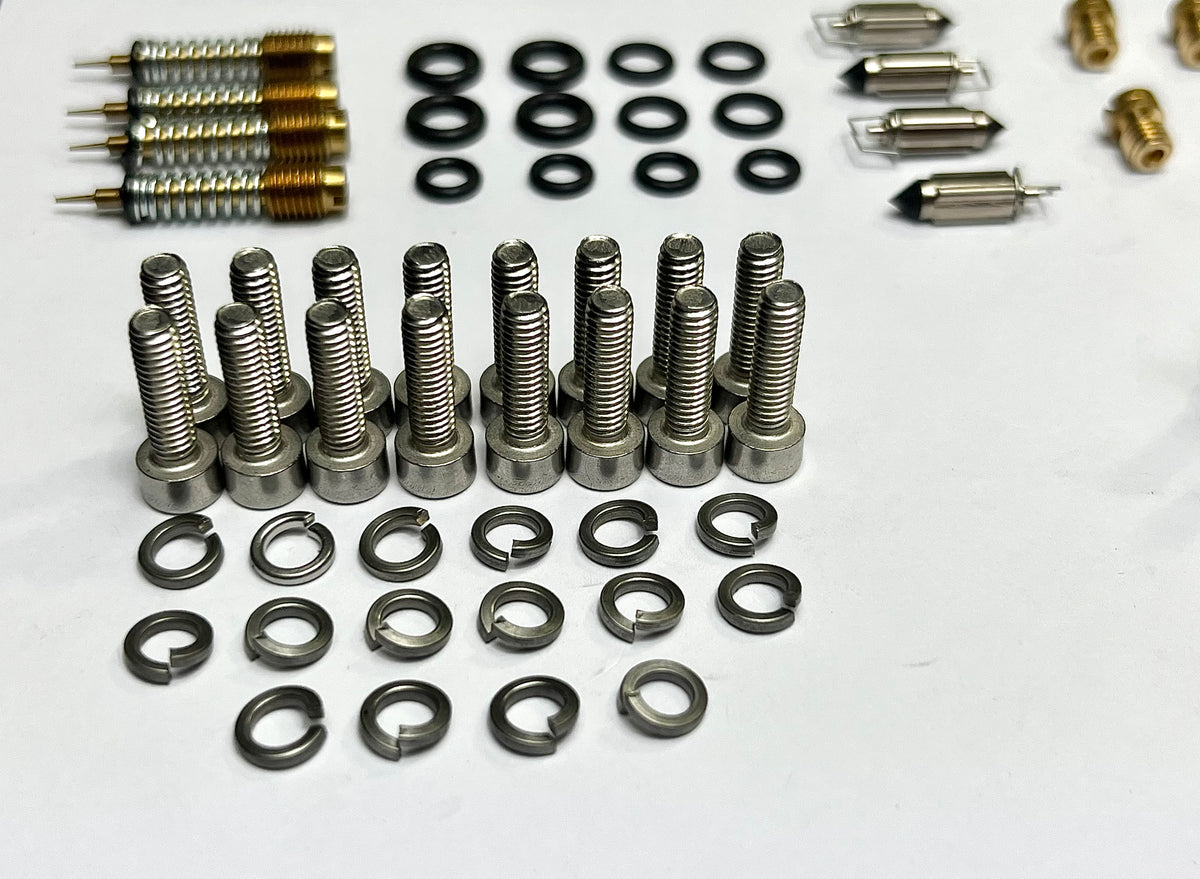

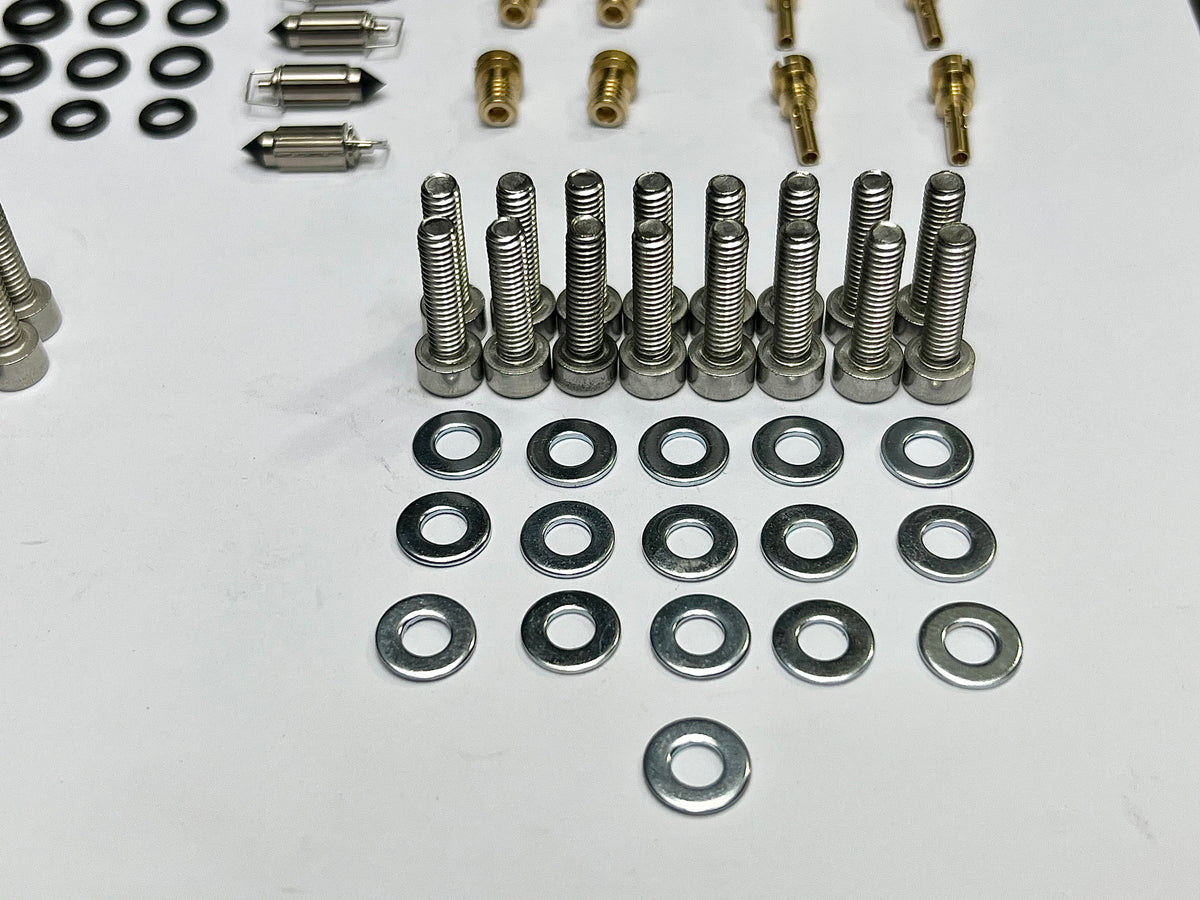

Stainless Steel Fasteners
- 16 × M4 × 14mm stainless steel hex bowl bolts
- 16 × M4 × 16mm stainless steel hex top cap bolts
- 16 × Top cap flat washers
- 16 × Float bowl spring washers
Staggered Main Jet Setup
The Mk1 GSF600 Bandit uses staggered main jetting.
Install the main jets as follows:
Cylinder 1: #98
Cylinder 2: #100
Cylinder 3: #100
Cylinder 4: #98
This gives the 98 / 100 / 100 / 98 arrangement, with the larger #100 jets fitted to the two inner cylinders.
Part Numbers / Cross References
Main Jet #98: Suzuki 09491-98008
Main Jet #100: Suzuki 09491-20023
Pilot Jet #35: Suzuki 09492-35020
Float Needle: Suzuki 13370-26E00
Mixture Screw: Suzuki 13279-26E00
Mixture Screw Washer: Suzuki 13291-26E00
Mixture Screw O-ring: Suzuki 13295-26E00
Compatibility
Suzuki GSF600 Bandit Mk1
- GSF600 Bandit 1995
- GSF600 Bandit 1996
- GSF600 Bandit 1997
- GSF600 Bandit 1998
- GSF600 Bandit 1999
Important: This kit is specifically for the Mk1 GSF600 Bandit carburettors. It is not intended for later GSF600 models with different carburettor specifications and jetting.
Full Carburettor Clean & Rebuild Service
Prefer to have the work carried out for you? Send your GSF600 Bandit carburettors to The Carb Shack and we’ll strip, clean, rebuild and set them up for you.
